Steel panel radiator with side connection
Steel panel radiator with side connection RADIK KLASIK is a steel panel radiator in KLASIK version which allows left or right side connection to the heating system. It is intended for pressurized or gravity-fed heating systems. There are two upper and two lower hangers welded at the back of the radiator. Radiators in length 1 800 mm and more have six hangers. The only exception is panel radiators in height 200 mm which do not have any hangers welded at the back side.
length from 15 3/4" to 118 1/8"
height from 7 7/8" to 35 3/8"
heat output from 563 to 27874 BTU/HR
left or right side connection
RADIK KLASIK we offer these in 484 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
RAL colour card
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 19 5/8 × 1 7/8
|
Heat output
(BTU/HR)
563
|
Type
|
Color
|
Code for ordering
10030050-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 23 5/8 × 1 7/8
|
Heat output
(BTU/HR)
676
|
Type
|
Color
|
Code for ordering
10030060-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
15 3/4 × 19 5/8 × 1 7/8
|
Heat output
(BTU/HR)
723
|
Type
|
Color
|
Code for ordering
10040050-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
15 3/4 × 23 5/8 × 1 7/8
|
Heat output
(BTU/HR)
867
|
Type
|
Color
|
Code for ordering
10040060-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 15 3/4 × 1 7/8
|
Heat output
(BTU/HR)
703
|
Type
|
Color
|
Code for ordering
10050040-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 19 5/8 × 1 7/8
|
Heat output
(BTU/HR)
877
|
Type
|
Color
|
Code for ordering
10050050-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 23 5/8 × 1 7/8
|
Heat output
(BTU/HR)
1051
|
Type
|
Color
|
Code for ordering
10050060-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 27 1/2 × 1 7/8
|
Heat output
(BTU/HR)
1228
|
Type
|
Color
|
Code for ordering
10050070-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 31 1/2 × 1 7/8
|
Heat output
(BTU/HR)
1402
|
Type
|
Color
|
Code for ordering
10050080-50-0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 5/8 × 35 3/8 × 1 7/8
|
Heat output
(BTU/HR)
1580
|
Type
|
Color
|
Code for ordering
10050090-50-0010
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Designed to be used for all types of the following models of panel radiators RADIK. Length 23 5/8 inches.
|
Z-D030
|
||
|
Designed to be used for all types of the following models of panel radiators RADIK. Length 35 3/7 inches.
|
Z-D031
|
||
|
Designed to be used for all types of the following models of panel radiators RADIK. Length 47 1/4 inches.
|
Z-D032
|
||
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 7 7/8, 11 3/4, 15 3/4, 19 5/8, 23 5/8, 27 1/2, 35 3/8 |
| L: Length (inch) | 15 3/4, 19 5/8, 23 5/8, 27 1/2, 31 1/2, 35 3/8, 39 3/8, 43 1/4, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4, 90 1/2, 102 3/8, 118 1/8 |
| Depth (inch) | |
| Type 22 | 3 7/8 inches |
| Type 10 | 1 7/8 inches |
| Type 11 | 2 1/2 inches |
| Type 20 | 2 5/8 inches |
| Type 21 | 2 5/8 inches |
| Type 33 | 6 1/8 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | h = H – 2 1/8" |
Heat output
| Q [BTU/HR] | Height [inches] | |||||
|---|---|---|---|---|---|---|
| Length [inches] | 11 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 35 3/8 |
| 15 3/4 | 703 | 826 | 949 | 1194 | ||
| 19 5/8 | 563 | 723 | 877 | 1030 | 1184 | 1495 |
| 23 5/8 | 676 | 867 | 1051 | 1235 | 1419 | 1791 |
| 27 1/2 | 1228 | 1443 | 1658 | 2092 | ||
| 31 1/2 | 1402 | 1648 | 1894 | 2388 | ||
| 35 3/8 | 1580 | 1856 | 2133 | 2689 | ||
| 39 3/8 | 1754 | 2061 | 2368 | 2986 | ||
| 43 1/4 | 1928 | 2266 | 2603 | 3286 | ||
| 47 1/4 | 2105 | 2474 | 2842 | 3583 | ||
| 55 1/8 | 2457 | 2887 | 3317 | 4180 | ||
| 63 | 2805 | 3296 | 3787 | 4777 | ||
| 70 7/8 | 3156 | 3709 | 4262 | |||
| 78 3/4 | 3508 | 4122 | 4736 | |||
Overview of Types

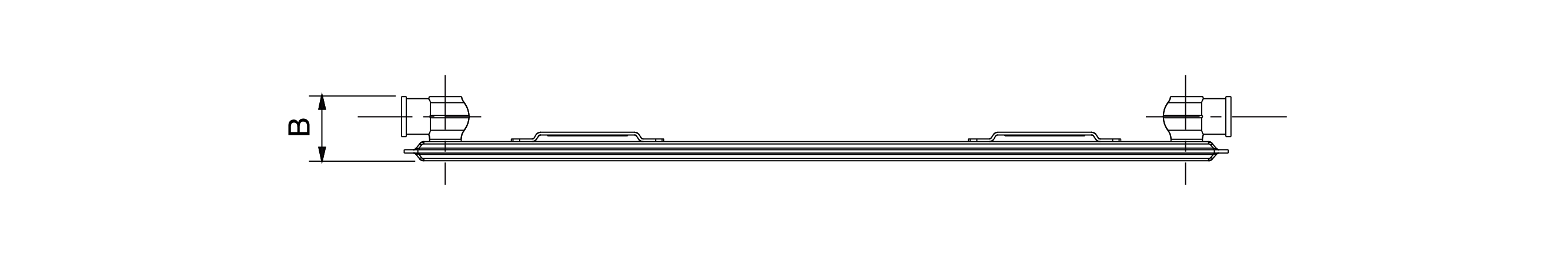

Type 22

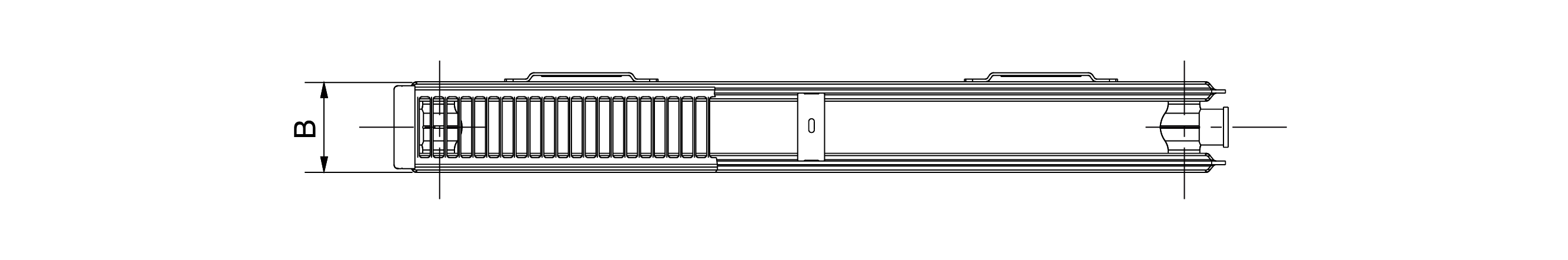

Type 10

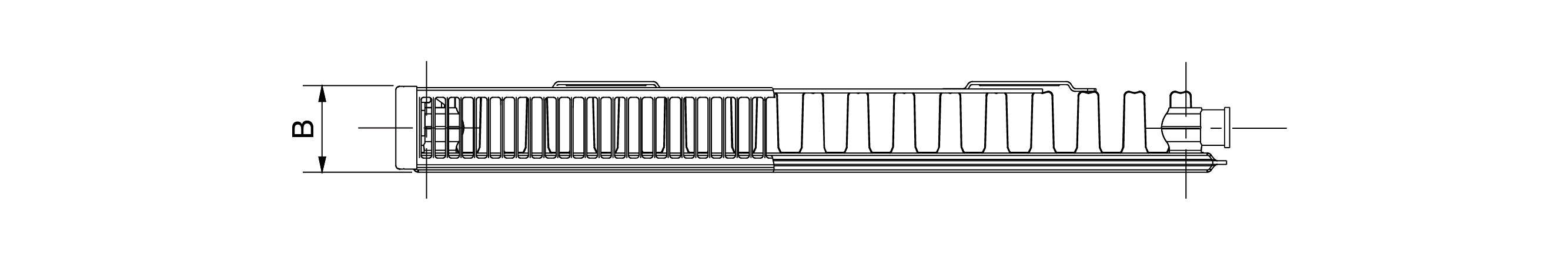

Type 11

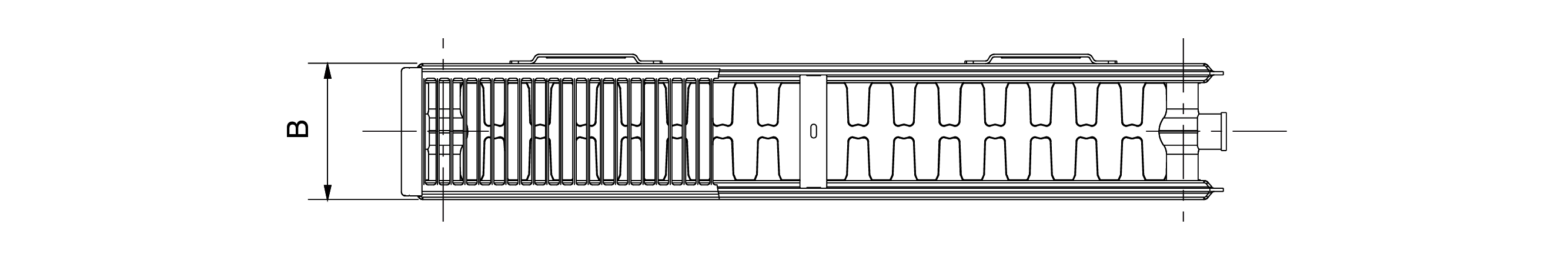

Type 20

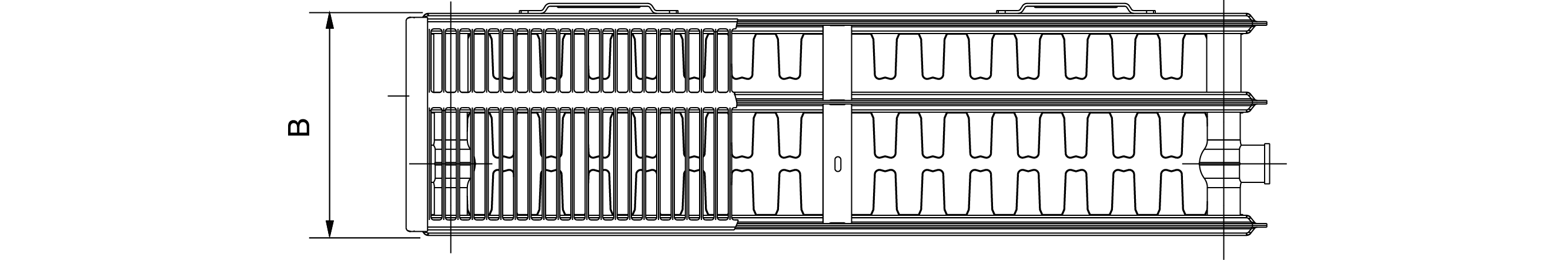

Type 21

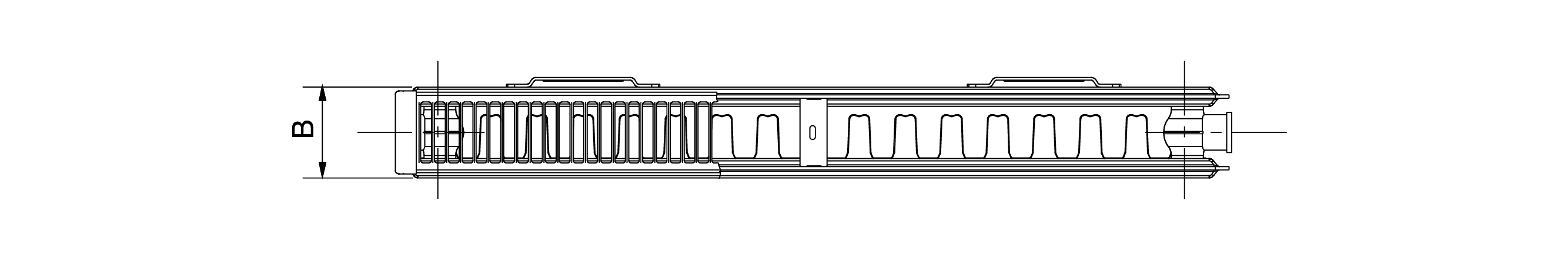

Type 33
