KORALUX RONDO COMFORT
Comfortable towel rail radiators with a balanced combination of function and design with bottom side connection

KORALUX RONDO COMFORT, Anthrazit Metallic code 32

KORALUX RONDO COMFORT, Pergamon code 26

KORALUX RONDO COMFORT
Towel rail radiator KORALUX RONDO COMFORT is produced from closed steel D-shaped profiles a and rounded profiles with a circular cross section. With a sufficient heat output of up to over 4000 BTU, this radiator is intended primarily for hotel and apartment bathrooms and other spaces. The connecting pitch is derived from the length of the radiator. The radiators are delivered with a set for wall mounting, including an air vent and blanking plugs. Their design enables drying of towels and clothes. Therefore, in our offer you will also find towel racks and towel pegs for these radiators.
Completed with an electric heating rod they can also be used for combined heating. The direct electric radiator KORALUX RONDO COMFORT – M is also available.
length from 445 to 745 mm
výška od 700 do 1820 mm
výkon od 287 do 1213 W
bottom connection, double-sided from the top down
KORALUX RONDO COMFORT we offer these in 20 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Heating element
The heating element with integrated controller allows the temperature to be set using the controller that is part of the heating element. In the case of the variant without integrated controller, the rod operates in on / off mode. Accessories for easy operation can be purchased with this bar.
Type
Select alternative
Select all
|
Dimensions (H × L)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Color
|
Code for ordering
|
---|---|---|---|---|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 17 1/2
|
Heat output
(BTU/HR)
979
|
Color
|
Code for ordering
KRT-070045-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 19 1/2
|
Heat output
(BTU/HR)
1075
|
Color
|
Code for ordering
KRT-070050-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 23 3/8
|
Heat output
(BTU/HR)
1262
|
Color
|
Code for ordering
KRT-070060-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 29 3/8
|
Heat output
(BTU/HR)
1535
|
Color
|
Code for ordering
KRT-070075-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 17 1/2
|
Heat output
(BTU/HR)
1259
|
Color
|
Code for ordering
KRT-090045-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 19 1/2
|
Heat output
(BTU/HR)
1382
|
Color
|
Code for ordering
KRT-090050-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 23 3/8
|
Heat output
(BTU/HR)
1621
|
Color
|
Code for ordering
KRT-090060-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 29 3/8
|
Heat output
(BTU/HR)
1976
|
Color
|
Code for ordering
KRT-090075-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
48 × 17 1/2
|
Heat output
(BTU/HR)
1720
|
Color
|
Code for ordering
KRT-122045-00-10
|
Your selection
|
Dimensions (H × L)
(inches)
48 × 19 1/2
|
Heat output
(BTU/HR)
1887
|
Color
|
Code for ordering
KRT-122050-00-10
|
Accessories
Heat output and technical information
Technical Data

H: Height (inch) | 27 1/2, 35 3/8, 48, 59, 71 5/8 |
L: Length (inch) | 17 1/2, 19 1/2, 23 3/8, 29 3/8 |
Highest allowed working temperature (°F) | 230 °F |
Highest allowed working pressure | 145,04 psi |
Connecting thread | inside G½ |

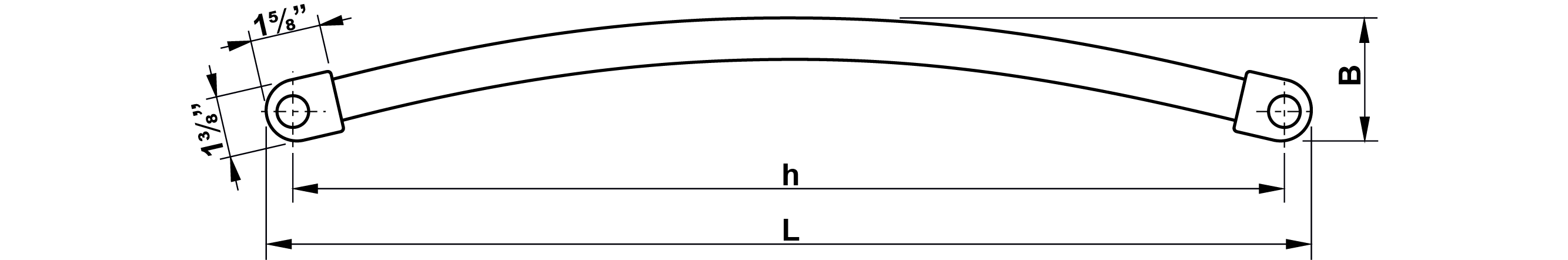

Connecting pitch | h = L - 1 1/6" |
Heat output
Steel profile 1 5/8" × 1 3/8"
Q [BTU/HR] | Height [inches] | ||||
---|---|---|---|---|---|
Length [inches] | 27 1/2 | 35 3/8 | 48 | 59 | 71 5/8 |
17 1/2 | 979 | 1259 | 1720 | 2136 | 2634 |
19 1/2 | 1075 | 1382 | 1887 | 2344 | 2893 |
23 3/8 | 1262 | 1621 | 2218 | 2757 | 3398 |
29 3/8 | 1535 | 1976 | 2699 | 3358 | 4139 |
Types of Connection
Bottom connection

Double-sided from the top down

Additional professional information
