KORALUX RONDO COMFORT-M
Comfortable towel rail radiators with a balanced combination of function and design with a modern middle connection
KORALUX RONDO COMFORT-M
KORALUX RONDO COMFORT-M, Pergamon code 26
Next photo (4)
KORALUX RONDO COMFORT - M
KORALUX RONDO COMFORT - M
KORALUX RONDO COMFORT - M, RAL 4002
KORALUX RONDO COMFORT - M, RAL 5019
KORALUX RONDO COMFORT - M, RAL 6000
Towel rail radiator KORALUX RONDO COMFORT - M is produced from closed steel D-shaped profiles a and rounded profiles with a circular cross section. With a sufficient heat output of up to over 4000 BTU, this radiator is intended primarily for hotel and apartment bathrooms and other spaces. Bottom middle connection with a connecting pitch of 2". The radiators are delivered with a set for wall mounting, including an air vent and blanking plugs. Their design enables drying of towels and clothes. Therefore, in our offer you will also find towel racks and towel pegs for these radiators.
Completed with an electric heating rod they can also be used for combined heating.
length from 17 1/2" to 29 3/8"
height from 27 1/2" to 71 5/8"
heat output from 979 to 4139 BTU/HR
bottom middle connection
KORALUX RONDO COMFORT-M we offer these in 20 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
20 %
RAL colour card
30 %
Heating element
The heating element with integrated controller allows the temperature to be set using the controller that is part of the heating element. In the case of the variant without integrated controller, the rod operates in on / off mode. Accessories for easy operation can be purchased with this bar.
Type
Select alternative
|
Select all
|
Dimensions (H × L)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Color
|
Code for ordering
|
|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 17 3/4
|
Heat output
(BTU/HR)
979
|
Color
|
Code for ordering
KRT-070045-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 19 5/8
|
Heat output
(BTU/HR)
1075
|
Color
|
Code for ordering
KRT-070050-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 23 5/8
|
Heat output
(BTU/HR)
1262
|
Color
|
Code for ordering
KRT-070060-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
27 1/2 × 29 1/2
|
Heat output
(BTU/HR)
1535
|
Color
|
Code for ordering
KRT-070075-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 17 3/4
|
Heat output
(BTU/HR)
1259
|
Color
|
Code for ordering
KRT-090045-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 19 5/8
|
Heat output
(BTU/HR)
1382
|
Color
|
Code for ordering
KRT-090050-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 23 5/8
|
Heat output
(BTU/HR)
1621
|
Color
|
Code for ordering
KRT-090060-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
35 3/8 × 29 1/2
|
Heat output
(BTU/HR)
1976
|
Color
|
Code for ordering
KRT-090075-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
48 × 17 3/4
|
Heat output
(BTU/HR)
1720
|
Color
|
Code for ordering
KRT-122045-00M10
|
|
Your selection
|
Dimensions (H × L)
(inches)
48 × 19 5/8
|
Heat output
(BTU/HR)
1887
|
Color
|
Code for ordering
KRT-122050-00M10
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL. Length 14 4/7 inches.
|
Z-D033
|
||
|
The open window sensor in cooperation with the heating element with the application (ERA) enables the heating to be turned off/on automatically in the room when the window is opened/closed.
|
Z-SKV-0007
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-39
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-27
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-10
|
||
|
T shaped branch.
|
Z-SKV-0009
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-39
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-57
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-10
|
||
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL.
|
Z-D037
|
||
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL. Length 20 2/5 inches.
|
Z-D034
|
||
|
The temperature sensor in cooperation with the heating element with the application (ERA) allows you to set and control the temperature in the selected room.
|
Z-SKV-0006
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 27 1/2, 35 3/8, 48, 59, 71 5/8 |
| L: Length (inch) | 17 3/4, 19 5/8, 23 5/8, 29 1/2 |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | inside G½ |
| Connecting pitch | 2" |
Heat output
Steel profile 1 5/8" × 1 3/8"
| Q [BTU/HR] | Height [inches] | ||||
|---|---|---|---|---|---|
| Length [inches] | 27 1/2 | 35 3/8 | 48 | 59 | 71 5/8 |
| 17 3/4 | 979 | 1259 | 1720 | 2136 | 2634 |
| 19 5/8 | 1075 | 1382 | 1887 | 2344 | 2893 |
| 23 5/8 | 1262 | 1621 | 2218 | 2757 | 3398 |
| 29 1/2 | 1535 | 1976 | 2699 | 3358 | 4139 |

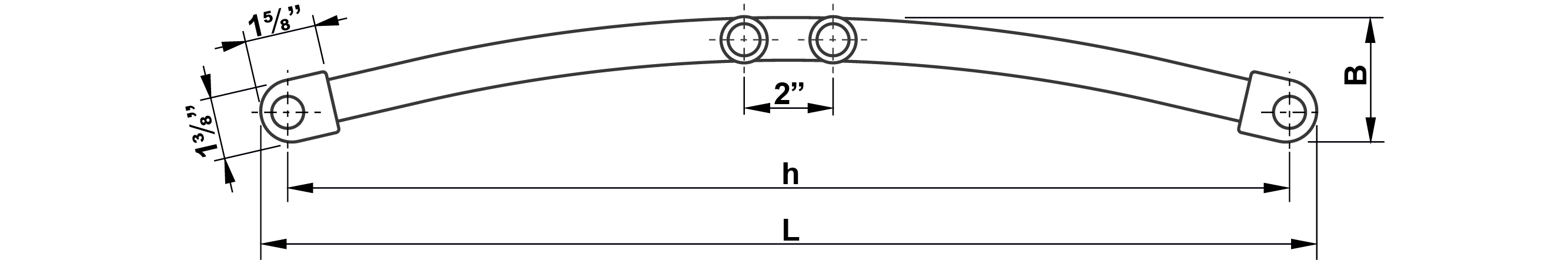

Technical drawing
Steel pipes Ø 1"
Steel profile 1 5/8" × 1 3/8"
Types of Connection
Bottom middle
