KORATHERM AQUAPANEL
Design radiator with horizontally aligned profiles
KORATHERM AQUAPANEL, Bahama code 16
KORATHERM AQUAPANEL, Red RAL 3001 code 37
Next photo (4)
KORATHERM AQUAPANEL
KORATHERM AQUAPANEL, RAL 9006 code 48
KORATHERM AQUAPANEL
KORATHERM AQUAPANEL, Alloy Black code 40
KORATHERM AQUAPANEL
KORATHERM AQUAPANEL is available in single-row (K10A) or double-row (K20A) version. Its design primarily enables bottom middle connection to pressurized heating systems. Alternatively, it is available for bottom side, or diagonal connection. Rectangular steel profiles 70 x 11 mm are used as heating elements, collector profiles are oval 50 x 30 mm. Special mounting set which ensures a safe fitting to the wall is delivered as standard. Universal use in the bathroom and as a design element in any room. At an operating pressure up to 58,02 PSI, its heat output is up to 7 169 BTU.
length from 19 2/3" to 29 1/2"
height from 31 1/9" to 70"
heat output from 1375 to 6166 BTU/HR
bottom middle, bottom connection, double-sided from the top down
KORATHERM AQUAPANEL we offer these in 30 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
20 %
RAL colour card
30 %
Heating element
The heating element with integrated controller allows the temperature to be set using the controller that is part of the heating element. In the case of the variant without integrated controller, the rod operates in on / off mode. Accessories for easy operation can be purchased with this bar.
Type
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
31 1/9 × 19 2/3 × 2 2/5
|
Heat output
(BTU/HR)
1375
|
Type
|
Color
|
Code for ordering
K10A079050-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
31 1/9 × 23 5/8 × 2 2/5
|
Heat output
(BTU/HR)
1621
|
Type
|
Color
|
Code for ordering
K10A079060-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
31 1/9 × 29 1/2 × 2 2/5
|
Heat output
(BTU/HR)
1979
|
Type
|
Color
|
Code for ordering
K10A079075-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
38 1/5 × 19 2/3 × 2 2/5
|
Heat output
(BTU/HR)
1675
|
Type
|
Color
|
Code for ordering
K10A097050-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
38 1/5 × 23 5/8 × 2 2/5
|
Heat output
(BTU/HR)
1976
|
Type
|
Color
|
Code for ordering
K10A097060-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
38 1/5 × 29 1/2 × 2 2/5
|
Heat output
(BTU/HR)
2412
|
Type
|
Color
|
Code for ordering
K10A097075-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
48 5/6 × 19 2/3 × 2 2/5
|
Heat output
(BTU/HR)
2112
|
Type
|
Color
|
Code for ordering
K10A124050-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
48 5/6 × 23 5/8 × 2 2/5
|
Heat output
(BTU/HR)
2487
|
Type
|
Color
|
Code for ordering
K10A124060-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
48 5/6 × 29 1/2 × 2 2/5
|
Heat output
(BTU/HR)
3040
|
Type
|
Color
|
Code for ordering
K10A124075-00M10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
59 4/9 × 19 2/3 × 2 2/5
|
Heat output
(BTU/HR)
2525
|
Type
|
Color
|
Code for ordering
K10A151050-00M10
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL. Length 14 4/7 inches.
|
Z-D033
|
||
|
The open window sensor in cooperation with the heating element with the application (ERA) enables the heating to be turned off/on automatically in the room when the window is opened/closed.
|
Z-SKV-0007
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-39
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-27
|
||
|
Covers cable and electric heating rods without regulator (ECO).
|
Z-SKV-0005-10
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-39
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-57
|
||
|
For electric heater when used in a socket.
|
Z-SKV-0008-10
|
||
|
T shaped branch.
|
Z-SKV-0009
|
||
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL.
|
Z-D037
|
||
|
Designed for use with all models of KORALUX towel rail radiators (except for the KORALUX STANDARD model) and design radiators KORATHERM AQUAPANEL. Length 20 2/5 inches.
|
Z-D034
|
||
|
The temperature sensor in cooperation with the heating element with the application (ERA) allows you to set and control the temperature in the selected room.
|
Z-SKV-0006
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 31 1/9, 38 1/5, 48 5/6, 59 4/9, 70 1/9 |
| L: Length (inch) | 19 2/3, 23 5/8, 29 1/2 |
| Depth (inch) | |
| Type 10 | 2 2/5 inches |
| Type 20 | 2 5/6 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 58,02 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | 2" |
Heat output
| Q [BTU/HR] | Height [inches] | ||||
|---|---|---|---|---|---|
| Length [inches] | 31 1/9 | 38 1/5 | 48 5/6 | 59 4/9 | 70 1/9 |
| 19 2/3 | 1969 | 2406 | 3033 | 3627 | 4187 |
| 23 5/8 | 2341 | 2863 | 3610 | 4316 | 4985 |
| 29 1/2 | 2897 | 3542 | 4466 | 5340 | 6166 |
Overview of Types

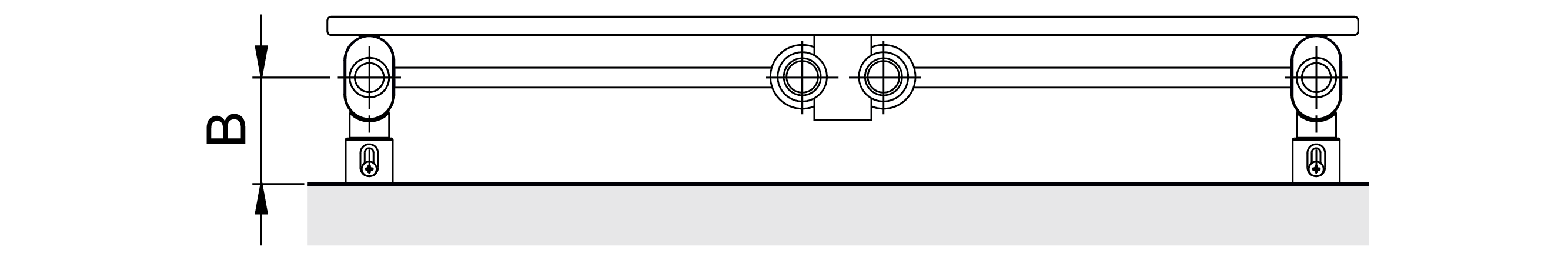

Type 10

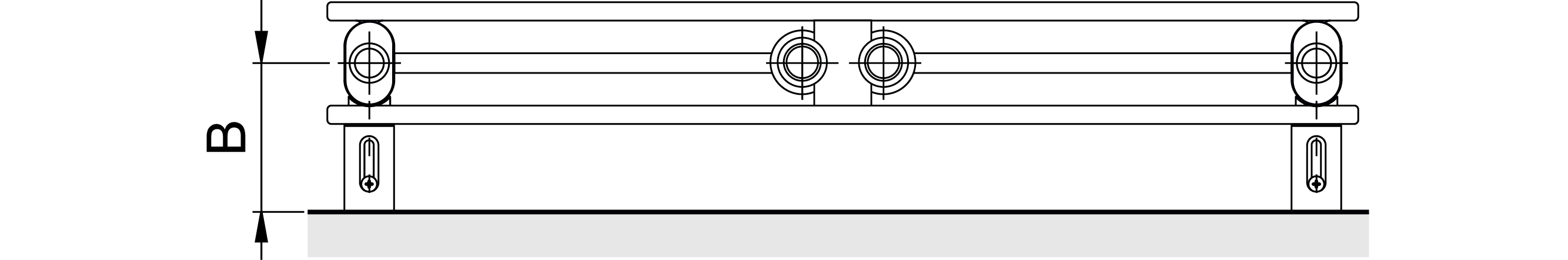

Type 20
Types of Connection
Bottom middle
Bottom connection
Double-sided from the top down
Additional professional information
Download
Filter the document type
26 documents found
