KORATHERM HORIZONTAL, K23H, K33H, K44H, K46H
Design radiators with horizontally aligned profiles and bottom connection

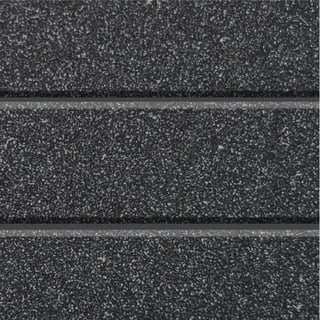

KORATHERM HORIZONTAL typ 44, Anthrazit Metallic code 32
KORATHERM HORIZONTAL typ 46
Next photo (1)
KORATHERM HORIZONTAL typ 23, Red RAL 3001 code 37
KORATHERM HORIZONTAL in a low version, with a height of 5-5/8, 8-5/8 and 11-1/2 inches, is a model of the design series of radiators with a vertical fitted profiles. Lower side connection to the heating system with forced circulation of the heat carrier. Types 44 and 46 are a combination of two radiators. Connecting parts are included in the price. These radiators are only attached to the floor using stand brackets. Fixing set is not part of the delivery.
length from 19 5/8" to 118 1/8"
height from 5 5/8" to 11 1/2"
heat output from 990 to 17453 BTU/HR
bottom to bottom connection
KORATHERM HORIZONTAL, K23H, K33H, K44H, K46H we offer these in 132 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
20 %
RAL colour card
30 %
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 19 5/8 × 6 1/4
|
Heat output
(BTU/HR)
990
|
Type
|
Color
|
Code for ordering
K23H014050N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 23 5/8 × 6 1/4
|
Heat output
(BTU/HR)
1184
|
Type
|
Color
|
Code for ordering
K23H014060N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 27 1/2 × 6 1/4
|
Heat output
(BTU/HR)
1382
|
Type
|
Color
|
Code for ordering
K23H014070N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 31 1/2 × 6 1/4
|
Heat output
(BTU/HR)
1580
|
Type
|
Color
|
Code for ordering
K23H014080N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 35 3/8 × 6 1/4
|
Heat output
(BTU/HR)
1778
|
Type
|
Color
|
Code for ordering
K23H014090N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 39 3/8 × 6 1/4
|
Heat output
(BTU/HR)
1976
|
Type
|
Color
|
Code for ordering
K23H014100N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 43 1/4 × 6 1/4
|
Heat output
(BTU/HR)
2174
|
Type
|
Color
|
Code for ordering
K23H014110N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 47 1/4 × 6 1/4
|
Heat output
(BTU/HR)
2371
|
Type
|
Color
|
Code for ordering
K23H014120N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 55 1/8 × 6 1/4
|
Heat output
(BTU/HR)
2767
|
Type
|
Color
|
Code for ordering
K23H014140N00-10
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
5 5/8 × 63 × 6 1/4
|
Heat output
(BTU/HR)
3160
|
Type
|
Color
|
Code for ordering
K23H014160N00-10
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 5 5/8, 8 5/8, 11 1/2 |
| L: Length (inch) | 19 5/8, 23 5/8, 27 1/2, 31 1/2, 35 3/8, 39 3/8, 43 1/4, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4, 90 1/2, 102 3/8, 118 1/8 |
| Depth (inch) | |
| Type 23 | 6 1/4 inches |
| Type 33 | 7 inches |
| Type 44 | 9 3/4 inches |
| Type 46 | 12 7/8 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 58,02 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | L - 2" |
Heat output
| Q [BTU/HR] | Height [inches] | |
|---|---|---|
| Length [inches] | 5 5/8 | 8 5/8 |
| 19 5/8 | 990 | 1474 |
| 23 5/8 | 1184 | 1767 |
| 27 1/2 | 1382 | 2061 |
| 31 1/2 | 1580 | 2354 |
| 35 3/8 | 1778 | 2651 |
| 39 3/8 | 1976 | 2945 |
| 43 1/4 | 2174 | 3238 |
| 47 1/4 | 2371 | 3535 |
| 55 1/8 | 2767 | 4122 |
| 63 | 3160 | 4712 |
| 70 7/8 | 3555 | 5299 |
| 78 3/4 | 3951 | 5889 |
| 90 1/2 | 4545 | 6773 |
| 102 3/8 | 5135 | 7657 |
| 118 1/8 | 5927 | 8834 |
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 5 5/8 | 8 5/8 | 11 1/2 |
| 19 5/8 | 1419 | 1832 | 2218 |
| 23 5/8 | 1703 | 2197 | 2661 |
| 27 1/2 | 1986 | 2563 | 3105 |
| 31 1/2 | 2272 | 2928 | 3549 |
| 35 3/8 | 2556 | 3296 | 3992 |
| 39 3/8 | 2839 | 3661 | 4436 |
| 43 1/4 | 3122 | 4026 | 4879 |
| 47 1/4 | 3405 | 4395 | 5323 |
| 55 1/8 | 3975 | 5125 | 6210 |
| 63 | 4542 | 5859 | 7097 |
| 70 7/8 | 5111 | 6589 | 7984 |
| 78 3/4 | 5678 | 7322 | 8872 |
| 90 1/2 | 6531 | 8421 | |
| 102 3/8 | 7380 | 9520 | |
| 118 1/8 | 8517 | 10984 | |
| Q [BTU/HR] | Height [inches] | |
|---|---|---|
| Length [inches] | 5 5/8 | 8 5/8 |
| 19 5/8 | 1692 | 2406 |
| 23 5/8 | 2030 | 2883 |
| 27 1/2 | 2368 | 3364 |
| 31 1/2 | 2709 | 3845 |
| 35 3/8 | 3047 | 4327 |
| 39 3/8 | 3385 | 4808 |
| 43 1/4 | 3723 | 5289 |
| 47 1/4 | 4060 | 5770 |
| 55 1/8 | 4739 | 6732 |
| 63 | 5415 | 7691 |
| 70 7/8 | 6094 | 8653 |
| 78 3/4 | 6770 | 9615 |
| 90 1/2 | 7787 | 11059 |
| 102 3/8 | 8800 | 12499 |
| 118 1/8 | 10155 | 14423 |
| Q [BTU/HR] | Height [inches] | |
|---|---|---|
| Length [inches] | 5 5/8 | 8 5/8 |
| 19 5/8 | 1993 | 2911 |
| 23 5/8 | 2388 | 3491 |
| 27 1/2 | 2788 | 4074 |
| 31 1/2 | 3187 | 4654 |
| 35 3/8 | 3583 | 5238 |
| 39 3/8 | 3982 | 5818 |
| 43 1/4 | 4381 | 6401 |
| 47 1/4 | 4777 | 6981 |
| 55 1/8 | 5575 | 8145 |
| 63 | 6370 | 9308 |
| 70 7/8 | 7169 | 10472 |
| 78 3/4 | 7964 | 11635 |
| 90 1/2 | 9158 | 13382 |
| 102 3/8 | 10352 | 15126 |
| 118 1/8 | 11946 | 17453 |
Overview of Types
Type 23
Type 33
Type 44
Type 46
Types of Connection
Bottom connection
Additional professional information
