RADIK HYGIENE VK
Steel panel radiator for rooms with high demands on hygiene and cleanness, with flat front panel and right bottom connection
Steel panel radiator for rooms with high demands on hygiene and cleanness, with flat front panel and right bottom connection RADIK HYGIENE VK is a panel radiator in VENTIL KOMPAKT version which enables right bottom connection to the pressurized heating system. It is suitable for installation and operation in rooms with high demands on hygiene and cleanness. All types are without convector fins; they have a flat front panel and the seam welds are covered with a special flat strip. The type 20S has got a bigger spacing between the panels (radiator depth B = 4") as compared to the standard spacing of type 20 (B = 5/8"). There are two upper and two lower hangers welded at the back side of the radiator. Radiators in length 70 7/8" and more have six hangers. An air-vent and blanking plugs are delivered as standard. We recommend using the drill-in brackets (type 18/120 – see the KORAMONT catalogue) which enable to mount the radiator in a distance of up to 2-1/2" from the wall. Notice: If the requested distance between the radiator and the wall should be 2-1/2 ÷ 3-1/8", the same type of brackets can be used on condition that the lower hangers are fixed with brackets (not with supporting pieces only). In such a case the additional brackets must be ordered extra.
length from 15 7/8" to 78 7/8"
height from 19 3/4" to 27 5/8"
heat output from 587 to 10256 BTU/HR
bottom right connection
RADIK HYGIENE VK we offer these in 117 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
%
RAL colour card
%
Select alternative
|
Select all
|
Dimensions (H × L × D)
|
Heat output
Výkon radiátoru je...
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 15 3/4 × 1 7/8
inches
|
Heat output
594
BTU/HR
|
Type
|
Color
|
Code for ordering
10050040-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 19 5/8 × 1 7/8
inches
|
Heat output
740
BTU/HR
|
Type
|
Color
|
Code for ordering
10050050-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 23 5/8 × 1 7/8
inches
|
Heat output
887
BTU/HR
|
Type
|
Color
|
Code for ordering
10050060-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 27 1/2 × 1 7/8
inches
|
Heat output
1034
BTU/HR
|
Type
|
Color
|
Code for ordering
10050070-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 31 1/2 × 1 7/8
inches
|
Heat output
1184
BTU/HR
|
Type
|
Color
|
Code for ordering
10050080-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 35 3/8 × 1 7/8
inches
|
Heat output
1331
BTU/HR
|
Type
|
Color
|
Code for ordering
10050090-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 39 3/8 × 1 7/8
inches
|
Heat output
1477
BTU/HR
|
Type
|
Color
|
Code for ordering
10050100-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 43 1/4 × 1 7/8
inches
|
Heat output
1624
BTU/HR
|
Type
|
Color
|
Code for ordering
10050110-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 47 1/4 × 1 7/8
inches
|
Heat output
1771
BTU/HR
|
Type
|
Color
|
Code for ordering
10050120-6CH0010
|
|
Your selection
|
Dimensions (H × L × D)
19 5/8 × 55 1/8 × 1 7/8
inches
|
Heat output
2064
BTU/HR
|
Type
|
Color
|
Code for ordering
10050140-6CH0010
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 19 5/8, 23 5/8, 27 1/2 |
| L: Length (inch) | 15 3/4, 19 5/8, 23 5/8, 27 1/2, 31 1/2, 35 3/8, 39 3/8, 43 1/4, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4 |
| Depth (inch) | |
| Type 10 | 1 7/8 inches |
| Type 20 S | 4 inches |
| Type 30 | 6 1/8 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | 2" |
Heat output
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 5/8 | 23 5/8 | 27 1/2 |
| 15 3/4 | 594 | 682 | 768 |
| 19 5/8 | 740 | 853 | 955 |
| 23 5/8 | 887 | 1024 | 1146 |
| 27 1/2 | 1034 | 1191 | 1334 |
| 31 1/2 | 1184 | 1361 | 1525 |
| 35 3/8 | 1331 | 1529 | 1716 |
| 39 3/8 | 1477 | 1699 | 1904 |
| 43 1/4 | 1624 | 1870 | 2095 |
| 47 1/4 | 1771 | 2037 | 2283 |
| 55 1/8 | 2064 | 2375 | 2665 |
| 63 | 2358 | 2716 | 3044 |
| 70 7/8 | 2655 | 3054 | 3422 |
| 78 3/4 | 2948 | 3392 | 3801 |
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 5/8 | 23 5/8 | 27 1/2 |
| 15 3/4 | 1112 | 1297 | 1477 |
| 19 5/8 | 1389 | 1617 | 1843 |
| 23 5/8 | 1665 | 1938 | 2208 |
| 27 1/2 | 1942 | 2259 | 2576 |
| 31 1/2 | 2218 | 2583 | 2941 |
| 35 3/8 | 2491 | 2904 | 3306 |
| 39 3/8 | 2767 | 3224 | 3671 |
| 43 1/4 | 3044 | 3545 | 4037 |
| 47 1/4 | 3320 | 3866 | 4405 |
| 55 1/8 | 3869 | 4507 | 5135 |
| 63 | 4422 | 5149 | 5865 |
| 70 7/8 | 4975 | 5794 | 6599 |
| 78 3/4 | 5524 | 6435 | 7329 |
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 5/8 | 23 5/8 | 27 1/2 |
| 15 3/4 | 1590 | 1839 | 2071 |
| 19 5/8 | 1982 | 2293 | 2586 |
| 23 5/8 | 2375 | 2747 | 3098 |
| 27 1/2 | 2771 | 3201 | 3610 |
| 31 1/2 | 3163 | 3658 | 4122 |
| 35 3/8 | 3555 | 4112 | 4637 |
| 39 3/8 | 3951 | 4565 | 5149 |
| 43 1/4 | 4344 | 5023 | 5661 |
| 47 1/4 | 4736 | 5476 | 6176 |
| 55 1/8 | 5524 | 6388 | 7200 |
| 63 | 6309 | 7295 | 8227 |
| 70 7/8 | 7097 | 8206 | 9250 |
| 78 3/4 | 7885 | 9114 | 10277 |
Overview of Types

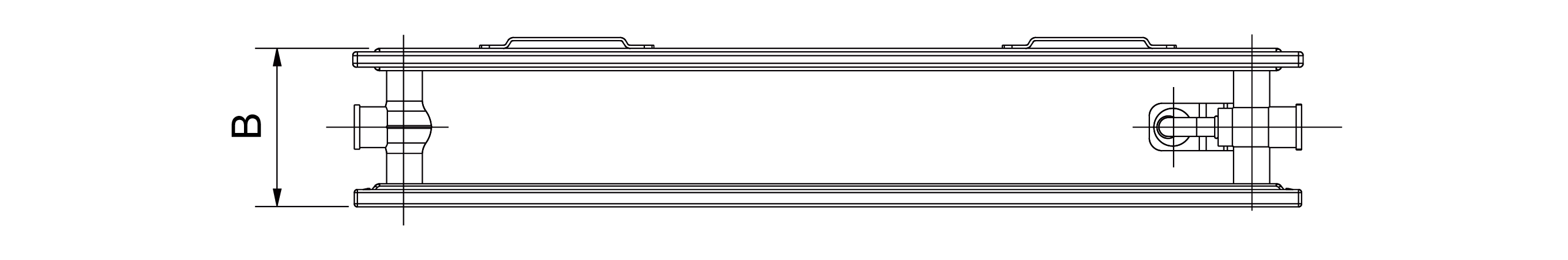

Type 10

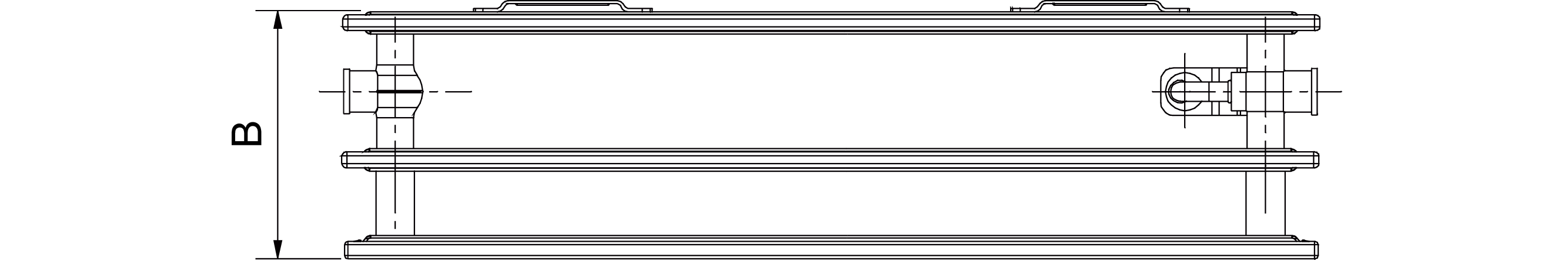

Type 20 S

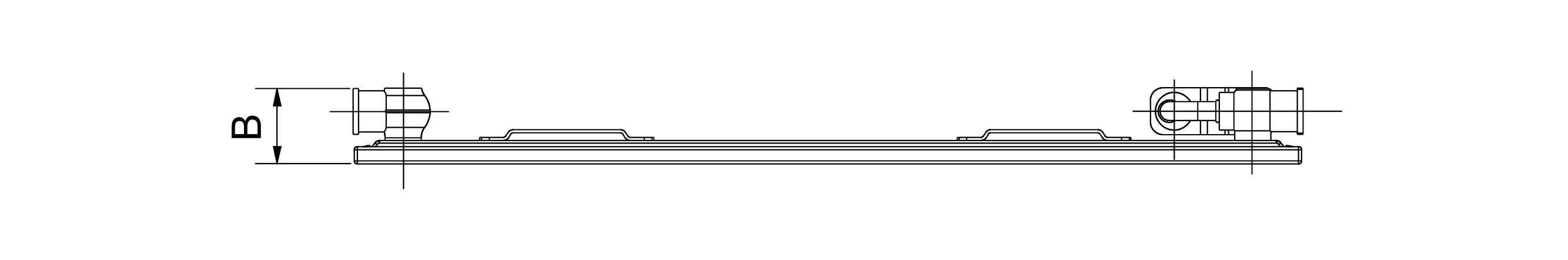

Type 30
