RADIK HYGIENE VKM8
Steel panel radiator for installation annd operation in rooms with high demands on hygiene and cleanness, with a flat front panel, and with bottom middle or bottom right connection.
RADIK HYGIENE VKM8
RADIK HYGIENE VKM8
Next photo (2)
RADIK HYGIENE VKM8
RADIK HYGIENE VKM8
RADIK HYGIENE VKM8
Model RADIK HYGIENE VKM8 is a steel panel radiator, in design VENTIL KOMPAKT, which can be connected to the heating system either from the left or from the right side. It is intended for use in pressure or gravity heating systems.It is suitable for installation and operation in rooms with high demands on hygiene and cleanliness. All types are without fins; they have a smooth front panel and the weld seams are covered with a special flat strip.

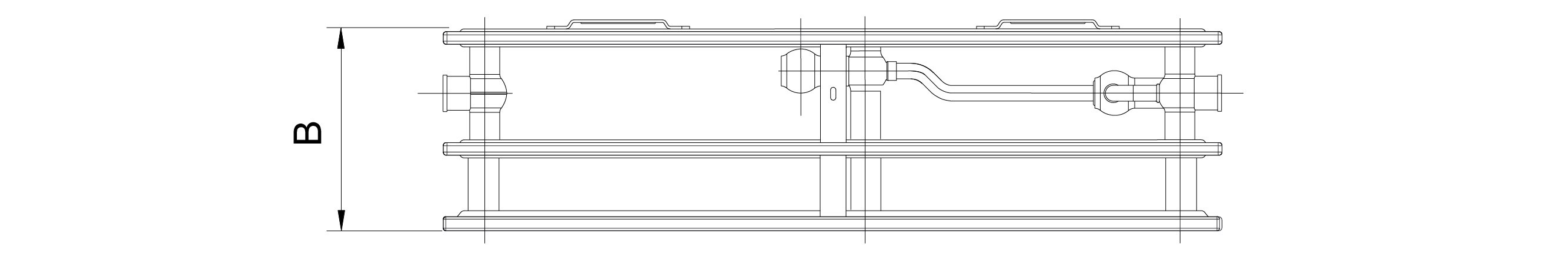

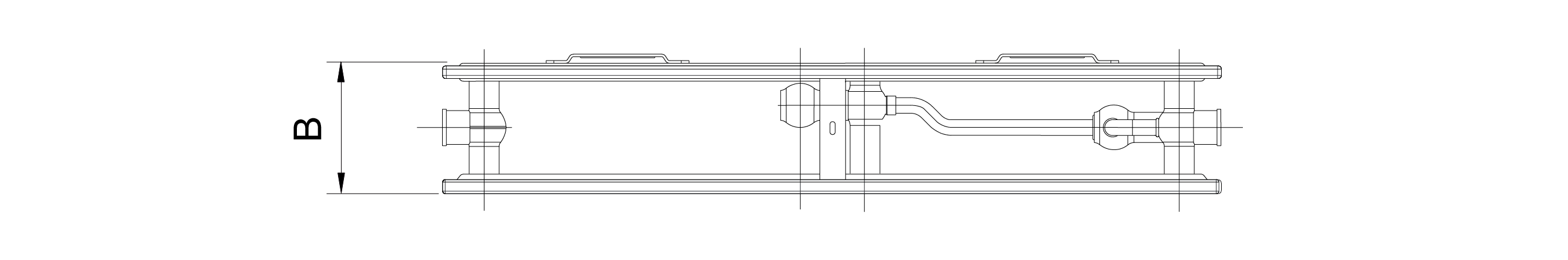

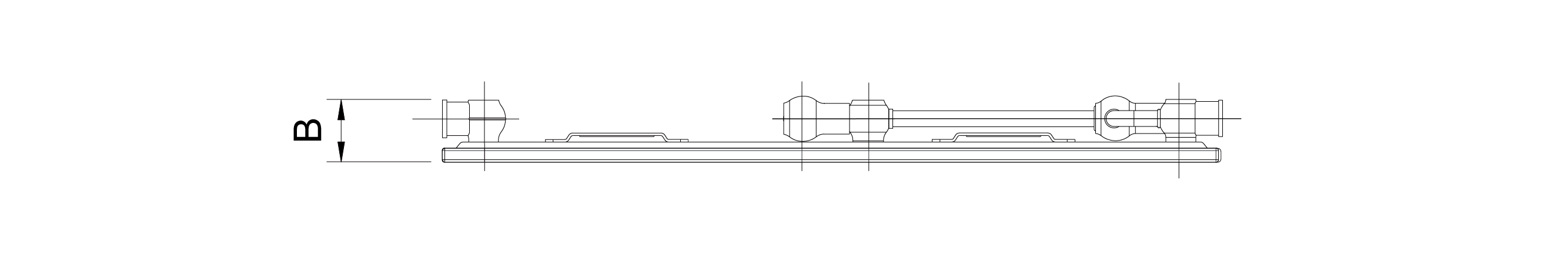

The type 20S is typical for a greater spacing between the panels (radiator depth B = 4") compared with the traditional design of type 20 (B = 2 5/8").
Two upper and two lower hangers are welded to the back side of the radiator, the radiators with length of 6 FT and more are equipped with six welded hangers. The standard product equipment includes an airvent and a blanking plug and the required number of drilling brackets to fix the radiator to the wall.
length from 15 7/8" to 78 7/8"
height from 19 3/4" to 27 5/8"
heat output from 594 to 10277 BTU/HR
bottom middle connection, bottom right connection
RADIK HYGIENE VKM8 we offer these in 117 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
RAL colour card
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 15 7/8 × 1 7/8
|
Heat output
(BTU/HR)
594
|
Type
|
Color
|
Code for ordering
10050040-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 19 7/8 × 1 7/8
|
Heat output
(BTU/HR)
740
|
Type
|
Color
|
Code for ordering
10050050-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 23 3/4 × 1 7/8
|
Heat output
(BTU/HR)
887
|
Type
|
Color
|
Code for ordering
10050060-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 27 3/4 × 1 7/8
|
Heat output
(BTU/HR)
1034
|
Type
|
Color
|
Code for ordering
10050070-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 31 5/8 × 1 7/8
|
Heat output
(BTU/HR)
1181
|
Type
|
Color
|
Code for ordering
10050080-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 35 5/8 × 1 7/8
|
Heat output
(BTU/HR)
1327
|
Type
|
Color
|
Code for ordering
10050090-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 39 1/2 × 1 7/8
|
Heat output
(BTU/HR)
1474
|
Type
|
Color
|
Code for ordering
10050100-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 43 1/2 × 1 7/8
|
Heat output
(BTU/HR)
1621
|
Type
|
Color
|
Code for ordering
10050110-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 47 3/8 × 1 7/8
|
Heat output
(BTU/HR)
1767
|
Type
|
Color
|
Code for ordering
10050120-SCH0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
19 3/4 × 55 1/4 × 1 7/8
|
Heat output
(BTU/HR)
2064
|
Type
|
Color
|
Code for ordering
10050140-SCH0010
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 19 3/4, 23 3/4, 27 5/8 |
| L: Length (inch) | 15 7/8, 19 7/8, 23 3/4, 27 3/4, 31 5/8, 35 5/8, 39 1/2, 43 1/2, 47 3/8, 55 1/4, 63 1/8, 71, 78 7/8 |
| Depth (inch) | |
| Type 10 | 1 7/8 inches |
| Type 20 S | 4 inches |
| Type 30 | 6 1/8 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | 2" |
Heat output
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 3/4 | 23 3/4 | 27 5/8 |
| 15 7/8 | 594 | 682 | 764 |
| 19 7/8 | 740 | 850 | 955 |
| 23 3/4 | 887 | 1020 | 1143 |
| 27 3/4 | 1034 | 1191 | 1334 |
| 31 5/8 | 1181 | 1358 | 1525 |
| 35 5/8 | 1327 | 1529 | 1713 |
| 39 1/2 | 1474 | 1696 | 1904 |
| 43 1/2 | 1621 | 1866 | 2092 |
| 47 3/8 | 1767 | 2037 | 2283 |
| 55 1/4 | 2064 | 2375 | 2661 |
| 63 1/8 | 2358 | 2713 | 3040 |
| 71 | 2651 | 3050 | 3422 |
| 78 7/8 | 2945 | 3388 | 3801 |
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 3/4 | 23 3/4 | 27 5/8 |
| 15 7/8 | 1112 | 1297 | 1477 |
| 19 7/8 | 1389 | 1617 | 1843 |
| 23 3/4 | 1665 | 1938 | 2208 |
| 27 3/4 | 1938 | 2259 | 2573 |
| 31 5/8 | 2214 | 2580 | 2938 |
| 35 5/8 | 2491 | 2900 | 3306 |
| 39 1/2 | 2767 | 3221 | 3671 |
| 43 1/2 | 3044 | 3542 | 4037 |
| 47 3/8 | 3317 | 3863 | 4402 |
| 55 1/4 | 3869 | 4507 | 5135 |
| 63 1/8 | 4422 | 5149 | 5865 |
| 71 | 4971 | 5790 | 6596 |
| 78 7/8 | 5524 | 6432 | 7329 |
| Q [BTU/HR] | Height [inches] | ||
|---|---|---|---|
| Length [inches] | 19 3/4 | 23 3/4 | 27 5/8 |
| 15 7/8 | 1587 | 1836 | 2071 |
| 19 7/8 | 1982 | 2290 | 2583 |
| 23 3/4 | 2375 | 2747 | 3095 |
| 27 3/4 | 2767 | 3201 | 3610 |
| 31 5/8 | 3163 | 3654 | 4122 |
| 35 5/8 | 3555 | 4112 | 4634 |
| 39 1/2 | 3948 | 4565 | 5149 |
| 43 1/2 | 4340 | 5019 | 5661 |
| 47 3/8 | 4736 | 5473 | 6173 |
| 55 1/4 | 5521 | 6384 | 7200 |
| 63 1/8 | 6309 | 7295 | 8223 |
| 71 | 7097 | 8203 | 9250 |
| 78 7/8 | 7882 | 9114 | 10277 |
Overview of Types
Type 10
Type 20 S
Type 30
Types of Connection
Bottom middle
Right bottom
Additional professional information
Download
