RADIK LINE KLASIK
Panel radiator with flat front panel with fine horizontal grooves and side connection
RADIK LINE KLASIK is a steel panel radiator with finely profiled - LINE front plate. The version KLASIK allows left or right side connection to the heating system circuit. It is intended for use in pressure or gravity heating systems.
Two upper and lower hangers are welded at the back of the radiator. Radiators from a length of 6 FT have six welded hangers.
length from 15 3/4" to 78 3/4"
height from 7 7/8" to 35 3/8"
heat output from 727 to 18071 BTU/HR
left or right side connection
RADIK LINE KLASIK we offer these in 322 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)

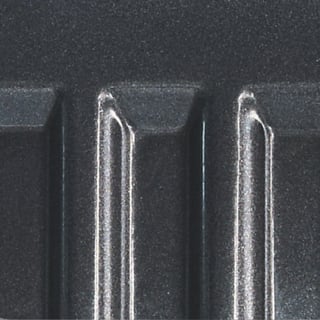

Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
RAL colour card
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 15 3/4 × 2 1/2
|
Heat output
(BTU/HR)
727
|
Type
|
Color
|
Code for ordering
11030040-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 19 5/8 × 2 1/2
|
Heat output
(BTU/HR)
911
|
Type
|
Color
|
Code for ordering
11030050-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 23 5/8 × 2 1/2
|
Heat output
(BTU/HR)
1092
|
Type
|
Color
|
Code for ordering
11030060-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 27 1/2 × 2 1/2
|
Heat output
(BTU/HR)
1273
|
Type
|
Color
|
Code for ordering
11030070-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 31 1/2 × 2 1/2
|
Heat output
(BTU/HR)
1454
|
Type
|
Color
|
Code for ordering
11030080-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 35 3/8 × 2 1/2
|
Heat output
(BTU/HR)
1638
|
Type
|
Color
|
Code for ordering
11030090-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 39 3/8 × 2 1/2
|
Heat output
(BTU/HR)
1819
|
Type
|
Color
|
Code for ordering
11030100-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 43 1/4 × 2 1/2
|
Heat output
(BTU/HR)
2000
|
Type
|
Color
|
Code for ordering
11030110-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 47 1/4 × 2 1/2
|
Heat output
(BTU/HR)
2184
|
Type
|
Color
|
Code for ordering
11030120-50L0010
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
11 3/4 × 55 1/8 × 2 1/2
|
Heat output
(BTU/HR)
2545
|
Type
|
Color
|
Code for ordering
11030140-50L0010
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 7 7/8, 11 3/4, 15 3/4, 19 5/8, 23 5/8, 27 1/2, 35 3/8 |
| L: Length (inch) | 15 3/4, 19 5/8, 23 5/8, 27 1/2, 31 1/2, 35 3/8, 39 3/8, 43 1/4, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4 |
| Depth (inch) | |
| Type 22 | 4 inches |
| Type 11 | 2 1/2 inches |
| Type 21 | 2 5/8 inches |
| Type 33 | 6 1/8 inches |
| Highest allowed working temperature (°F) | 230 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | h = H – 2 1/8" |
Heat output
| Q [BTU/HR] | Height [inches] | ||||||
|---|---|---|---|---|---|---|---|
| Length [inches] | 7 7/8 | 11 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 35 3/8 |
| 15 3/4 | 1293 | 1621 | 1931 | 2225 | 2511 | 3061 | |
| 19 5/8 | 1617 | 2027 | 2412 | 2784 | 3143 | 3828 | |
| 23 5/8 | 1942 | 2429 | 2893 | 3340 | 3770 | 4593 | |
| 27 1/2 | 2266 | 2835 | 3378 | 3897 | 4398 | 5357 | |
| 31 1/2 | 1709 | 2586 | 3242 | 3859 | 4453 | 5026 | 6121 |
| 35 3/8 | 1921 | 2911 | 3644 | 4344 | 5009 | 5654 | 6889 |
| 39 3/8 | 2136 | 3235 | 4050 | 4825 | 5565 | 6282 | 7653 |
| 43 1/4 | 2351 | 3559 | 4456 | 5306 | 6121 | 6910 | 8418 |
| 47 1/4 | 2563 | 3883 | 4859 | 5790 | 6678 | 7537 | 9185 |
| 55 1/8 | 2989 | 4528 | 5671 | 6756 | 7790 | 8793 | 10714 |
| 63 | 3419 | 5176 | 6480 | 7718 | 8906 | 10052 | 12246 |
| 70 7/8 | 3845 | 5821 | 7292 | 8684 | 10018 | 11308 | |
| 78 3/4 | 4272 | 6469 | 8100 | 9650 | 11130 | 12564 | |
| Q [BTU/HR] | Height [inches] | |||||
|---|---|---|---|---|---|---|
| Length [inches] | 11 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 35 3/8 |
| 15 3/4 | 727 | 925 | 1116 | 1300 | 1481 | 1825 |
| 19 5/8 | 911 | 1157 | 1396 | 1628 | 1849 | 2283 |
| 23 5/8 | 1092 | 1389 | 1675 | 1952 | 2218 | 2737 |
| 27 1/2 | 1273 | 1621 | 1955 | 2276 | 2590 | 3194 |
| 31 1/2 | 1454 | 1849 | 2232 | 2600 | 2958 | 3651 |
| 35 3/8 | 1638 | 2081 | 2511 | 2928 | 3330 | 4105 |
| 39 3/8 | 1819 | 2313 | 2791 | 3252 | 3699 | 4562 |
| 43 1/4 | 2000 | 2545 | 3071 | 3576 | 4067 | 5019 |
| 47 1/4 | 2184 | 2777 | 3351 | 3903 | 4439 | 5473 |
| 55 1/8 | 2545 | 3238 | 3907 | 4552 | 5180 | 6388 |
| 63 | 2911 | 3702 | 4466 | 5204 | 5917 | 7299 |
| 70 7/8 | 3272 | 4163 | 5023 | 5852 | 6657 | |
| 78 3/4 | 3637 | 4627 | 5582 | 6504 | 7398 | |
| Q [BTU/HR] | Height [inches] | |||||
|---|---|---|---|---|---|---|
| Length [inches] | 11 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 35 3/8 |
| 15 3/4 | 993 | 1222 | 1447 | 1669 | 1890 | 2334 |
| 19 5/8 | 1242 | 1529 | 1808 | 2085 | 2361 | 2921 |
| 23 5/8 | 1488 | 1836 | 2170 | 2501 | 2832 | 3504 |
| 27 1/2 | 1737 | 2139 | 2532 | 2917 | 3306 | 4088 |
| 31 1/2 | 1986 | 2447 | 2893 | 3337 | 3777 | 4671 |
| 35 3/8 | 2232 | 2750 | 3255 | 3753 | 4252 | 5255 |
| 39 3/8 | 2481 | 3057 | 3617 | 4170 | 4722 | 5838 |
| 43 1/4 | 2730 | 3364 | 3979 | 4586 | 5193 | 6422 |
| 47 1/4 | 2975 | 3668 | 4340 | 5002 | 5668 | 7005 |
| 55 1/8 | 3474 | 4279 | 5064 | 5838 | 6613 | 8172 |
| 63 | 3968 | 4893 | 5787 | 6671 | 7554 | 9342 |
| 70 7/8 | 4466 | 5504 | 6510 | 7507 | 8500 | |
| 78 3/4 | 4961 | 6115 | 7234 | 8339 | 9445 | |
| Q [BTU/HR] | Height [inches] | ||||||
|---|---|---|---|---|---|---|---|
| Length [inches] | 7 7/8 | 11 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 35 3/8 |
| 15 3/4 | 1825 | 2307 | 2760 | 3194 | 3613 | 4408 | |
| 19 5/8 | 2283 | 2883 | 3450 | 3996 | 4518 | 5514 | |
| 23 5/8 | 2737 | 3456 | 4139 | 4794 | 5422 | 6616 | |
| 27 1/2 | 3194 | 4033 | 4828 | 5593 | 6326 | 7718 | |
| 31 1/2 | 2505 | 3651 | 4610 | 5521 | 6391 | 7227 | 8820 |
| 35 3/8 | 2818 | 4105 | 5186 | 6210 | 7189 | 8131 | 9923 |
| 39 3/8 | 3132 | 4562 | 5763 | 6899 | 7988 | 9035 | 11025 |
| 43 1/4 | 3446 | 5019 | 6340 | 7589 | 8786 | 9940 | 12127 |
| 47 1/4 | 3760 | 5473 | 6916 | 8278 | 9585 | 10844 | 13229 |
| 55 1/8 | 4385 | 6388 | 8070 | 9660 | 11182 | 12649 | 15433 |
| 63 | 5012 | 7299 | 9220 | 11038 | 12782 | 14457 | 17641 |
| 70 7/8 | 5637 | 8213 | 10373 | 12420 | 14379 | 16262 | |
| 78 3/4 | 6265 | 9124 | 11526 | 13799 | 15976 | 18071 | |
Overview of Types

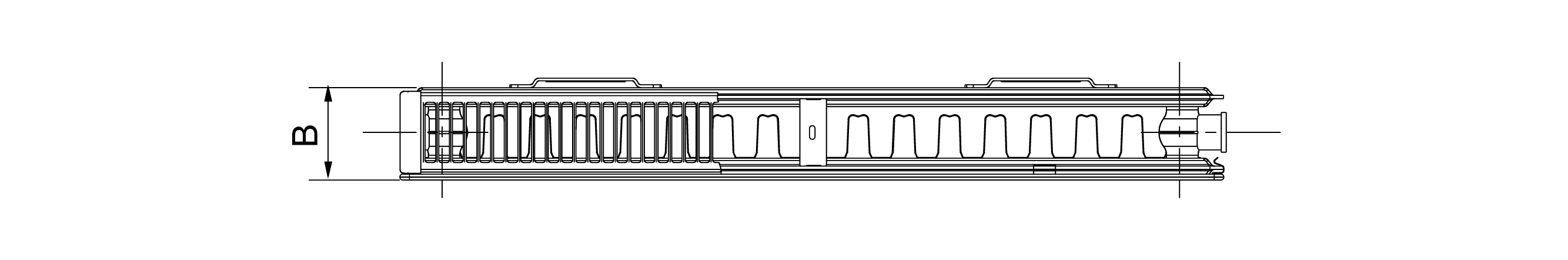

Type 22

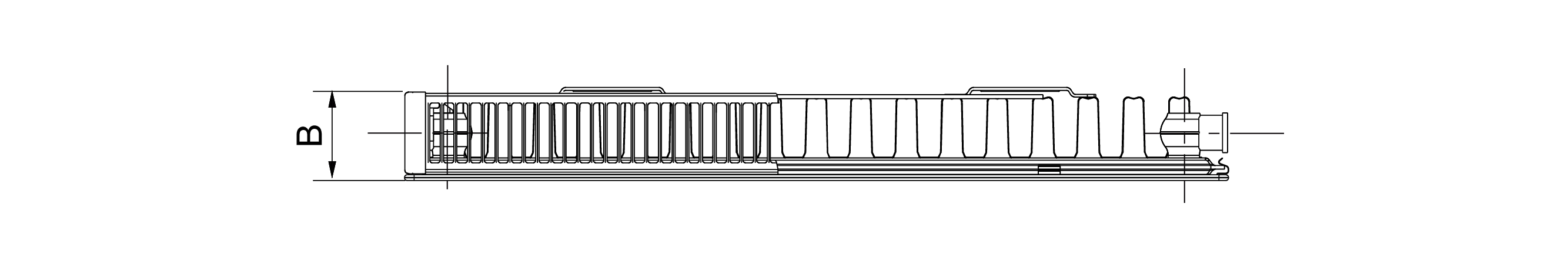

Type 11

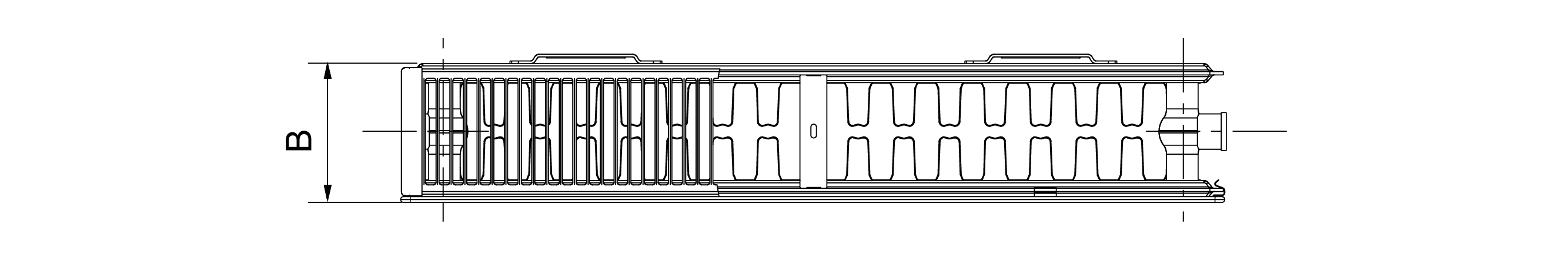

Type 21

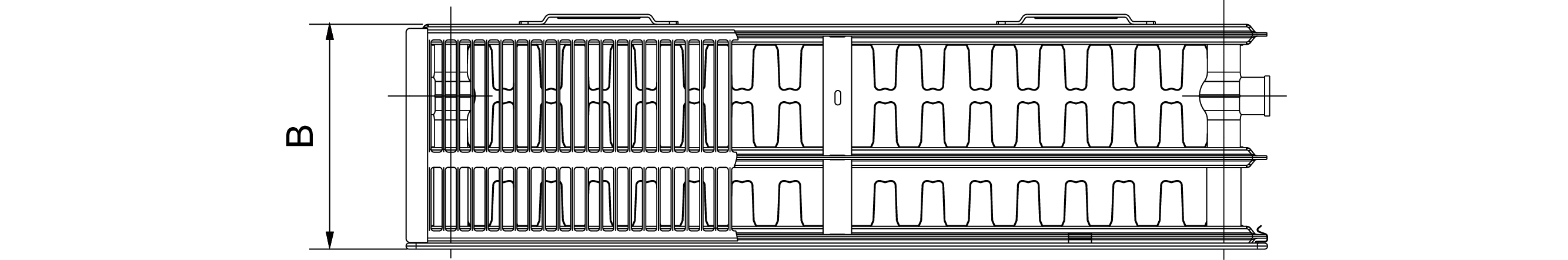

Type 33
Types of Connection
Side - one side
Side - two sides diagonal
Side - two sides direct
