RADIK PLAN KLASIK

Steel panel radiator with flat front panel and side connection

Steel panel radiator with flat front panel and side connection RADIK PLAN KLASIK is a steel panel radiator in KLASIK version which allows left or right side connection to pressurized or gravity-fed heating systems. There are two upper and two lower hangers welded at the back side of the radiator. Radiators in length 1 800 mm long and more have six hangers. The only exception is panel radiators in height 200 mm which do not have any hangers welded at the back side.

Show full text
length from 15 3/4" to 78 3/4"

length from 15 3/4" to 78 3/4"

heat output from 727 to 18071 BTU/HR

heat output from 727 to 18071 BTU/HR

height from 7 7/8" to 35 3/8"

height from 7 7/8" to 35 3/8"

left or right side connection

left or right side connection

RADIK PLAN KLASIK we offer these in 322 alternatives

Filter by parameters

Selection of dimensions

Enter required dimensions.

Heat output (For professionals)

t1: 167 °F
t2: 149 °F
ti: 68 °F
ΔT: 90 °F

The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)

Select colour

Basic white

The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.

Leave white

Free of charge

KORADO colour card

RAL colour card

Select alternative

Select all
Dimensions (H × L × D)
inches
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
Type
Color
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 15 3/4 × 2 5/9
Heat output (BTU/HR)
727
Type
Color
White
Code for ordering
11030040-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 19 2/3 × 2 5/9
Heat output (BTU/HR)
911
Type
Color
White
Code for ordering
11030050-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 23 5/8 × 2 5/9
Heat output (BTU/HR)
1092
Type
Color
White
Code for ordering
11030060-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 27 5/9 × 2 5/9
Heat output (BTU/HR)
1273
Type
Color
White
Code for ordering
11030070-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 31 1/2 × 2 5/9
Heat output (BTU/HR)
1454
Type
Color
White
Code for ordering
11030080-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 35 3/7 × 2 5/9
Heat output (BTU/HR)
1638
Type
Color
White
Code for ordering
11030090-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 39 3/8 × 2 5/9
Heat output (BTU/HR)
1819
Type
Color
White
Code for ordering
11030100-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 43 2/7 × 2 5/9
Heat output (BTU/HR)
2000
Type
Color
White
Code for ordering
11030110-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 47 1/4 × 2 5/9
Heat output (BTU/HR)
2184
Type
Color
White
Code for ordering
11030120-50P0010
Your selection
Dimensions (H × L × D) (inches)
11 4/5 × 55 1/8 × 2 5/9
Heat output (BTU/HR)
2545
Type
Color
White
Code for ordering
11030140-50P0010

Accessories

Title Description Code
Radiator brush - RADIK - Z-D029
Intended for cleaning all radiators KORADO.
Z-D029

Download or save your selection

Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.

Send by e-mail
Copy link

Heat output and technical information

Technical Data

RADIK PLAN KLASIK | radik_klasik_plan-01.png
H: Height (inch) 7 7/8, 11 4/5, 15 3/4, 19 2/3, 23 5/8, 27 5/9, 35 3/7
L: Length (inch) 15 3/4, 19 2/3, 23 5/8, 27 5/9, 31 1/2, 35 3/7, 39 3/8, 43 2/7, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4
Depth (inch)

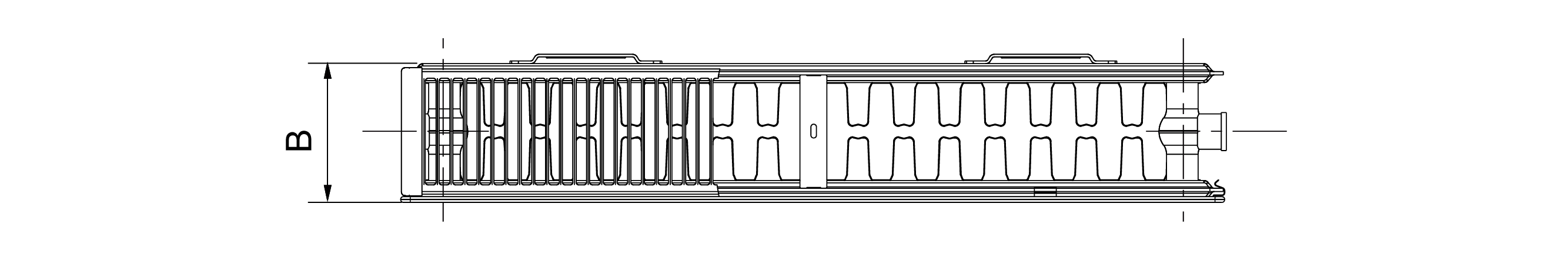

Type 22 4 inches

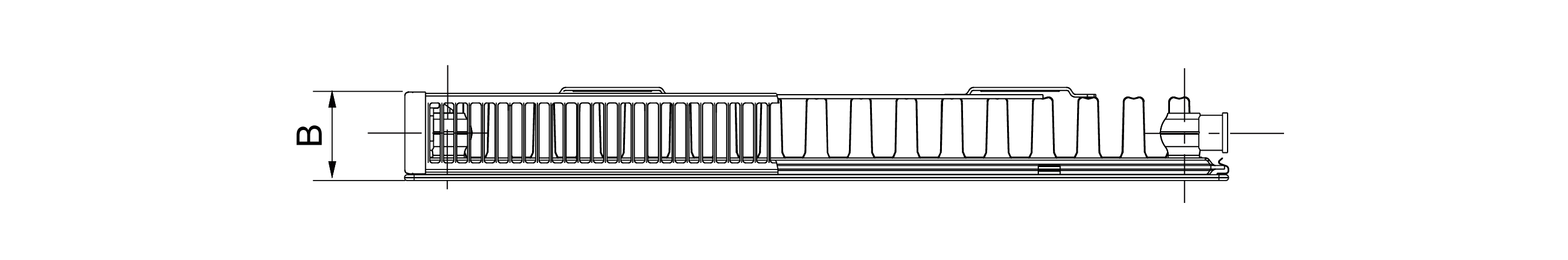

Type 11 2 5/9 inches

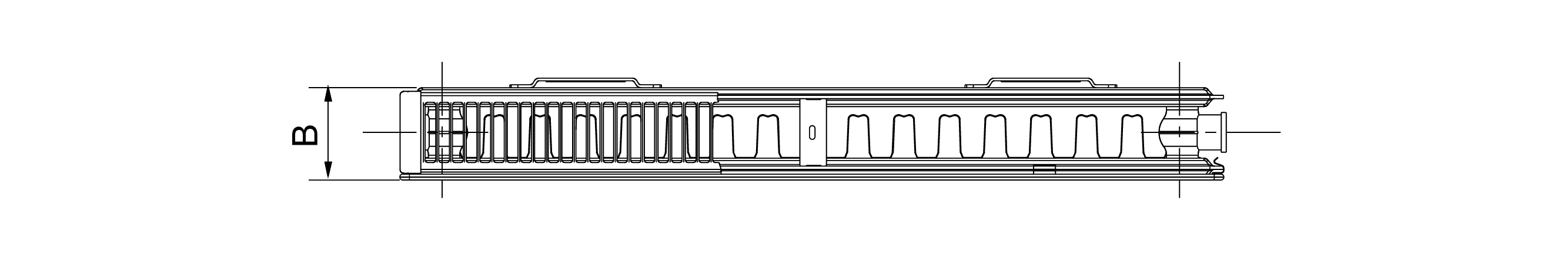

Type 21 2 2/3 inches

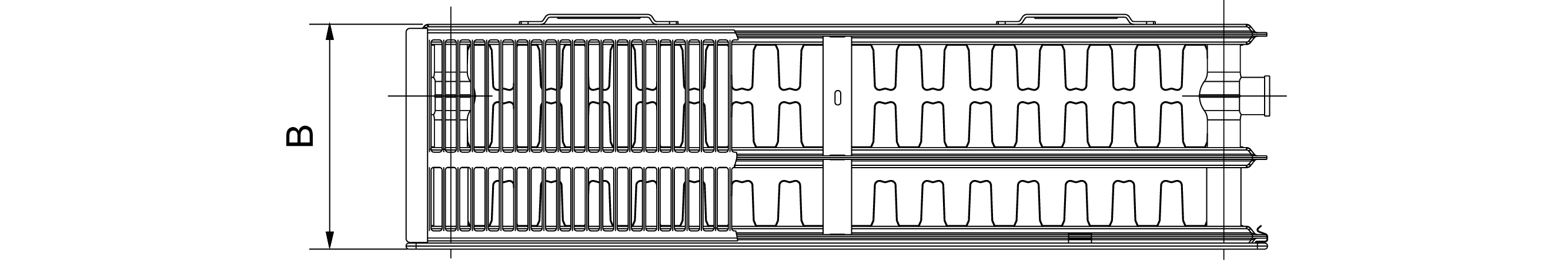

Type 33 6 1/6 inches
Highest allowed working temperature (°F) 230 °F
Highest allowed working pressure 145,04 psi
Connecting thread G 1/2" inside
Connecting pitch h = H – 2 1/8"

Heat output

Q [BTU/HR] Height [inches]
Length [inches] 7 7/8 11 4/5 15 3/4 19 2/3 23 5/8 27 5/9 35 3/7
15 3/4 1825 2307 2760 3194 3613 4408
19 2/3 2283 2883 3450 3996 4518 5514
23 5/8 2737 3456 4139 4794 5422 6616
27 5/9 3194 4033 4828 5593 6326 7718
31 1/2 2505 3651 4610 5521 6391 7227 8820
35 3/7 2818 4105 5186 6210 7189 8131 9923
39 3/8 3132 4562 5763 6899 7988 9035 11025
43 2/7 3446 5019 6340 7589 8786 9940 12127
47 1/4 3760 5473 6916 8278 9585 10844 13229
55 1/8 4385 6388 8070 9660 11182 12649 15433
63 5012 7299 9220 11038 12782 14457 17641
70 7/8 5637 8213 10373 12420 14379 16262
78 3/4 6265 9124 11526 13799 15976 18071

Overview of Types

Type 22
Type 11
Type 21
Type 33

Types of Connection

Side - one side
RADIK PLAN KLASIK - connection Side - one side
Side - two sides diagonal
RADIK PLAN KLASIK - connection Side - two sides diagonal
Side - two sides direct
RADIK PLAN KLASIK - connection Side - two sides direct

Download

Filter the document type

Catalogue (3)
Product list (0)
Ceník (0)
Mounting (4)
Colour card (2)
Outputs (1)
Certificate (6)
Logos (2)
Other (0)
Other (0)
Atypická výroba (0)
Ecological certificates (0)
New
New!

Check out our new RADIK V-POWER. Radiator suitable for heat pumps. RADIK V-POWER

That interests me
