RADIK V-POWER
A steel panel radiator suitable for low-temperature heat sources
The RADIK V-POWER is an innovative steel panel radiator in the PLAN version with a flat front panel and an integrated fan module which can increase the heat output by up to 60%. Its design is intended for low-temperature heating systems, most often with heat pumps. It allows for connection to the heating system from the bottom middle of the radiator, the bottom right, the left or right side. Two upper and lower fixing hangers are welded to the back. Radiators with a length of 1 800 mm or more have six welded fixing brackets.
If you have replaced your heat source and don't want to go to all the trouble of replacing your entire heating system, we have a great solution for you. Simply buy our special RADIK V-POWER SET.
length from 15 3/4" to 78 3/4"
height 20 5/8", 24 5/8", 36 3/8"
heat output from 925 to 3743 BTU/HR
bottom middle connection, bottom right connection
RADIK V-POWER we offer these in 273 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
RAL colour card
Select alternative
|
Select all
|
Dimensions (H × L × D)
inches
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
BTU/HR
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
Fan setting degree
|
|---|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 15 3/4 × 4
|
Heat output
(BTU/HR)
645
|
Type
|
Color
|
Code for ordering
22050040-SYP0010
|
Fan setting degree
0
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 15 3/4 × 4
|
Heat output
(BTU/HR)
880
|
Type
|
Color
|
Code for ordering
22050040-SYP0010
|
Fan setting degree
3
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 15 3/4 × 4
|
Heat output
(BTU/HR)
959
|
Type
|
Color
|
Code for ordering
22050040-SYP0010
|
Fan setting degree
5
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 19 5/8 × 4
|
Heat output
(BTU/HR)
805
|
Type
|
Color
|
Code for ordering
22050050-SYP0010
|
Fan setting degree
0
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 19 5/8 × 4
|
Heat output
(BTU/HR)
1099
|
Type
|
Color
|
Code for ordering
22050050-SYP0010
|
Fan setting degree
3
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 19 5/8 × 4
|
Heat output
(BTU/HR)
1201
|
Type
|
Color
|
Code for ordering
22050050-SYP0010
|
Fan setting degree
5
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 23 5/8 × 4
|
Heat output
(BTU/HR)
966
|
Type
|
Color
|
Code for ordering
22050060-SYP0010
|
Fan setting degree
0
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 23 5/8 × 4
|
Heat output
(BTU/HR)
1317
|
Type
|
Color
|
Code for ordering
22050060-SYP0010
|
Fan setting degree
3
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 23 5/8 × 4
|
Heat output
(BTU/HR)
1440
|
Type
|
Color
|
Code for ordering
22050060-SYP0010
|
Fan setting degree
5
|
|
Your selection
|
Dimensions (H × L × D)
(inches)
20 5/8 × 27 1/2 × 4
|
Heat output
(BTU/HR)
1126
|
Type
|
Color
|
Code for ordering
22050070-SYP0010
|
Fan setting degree
0
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Extension cable - to the V-POWER heating element 70 6/7 inches.
|
Z-PNK-18
|
||
|
Extension cable - to the V-POWER heating element 196 6/7 inches.
|
Z-PNK-50
|
||
|
Spare side covers, grids and accessories for fixing them. Choose according to size.
|
|
||
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (inch) | 20 5/8, 24 5/8, 28 1/2, 36 3/8 |
| L: Length (inch) | 15 3/4, 19 5/8, 23 5/8, 27 1/2, 31 1/2, 35 3/8, 39 3/8, 43 1/4, 47 1/4, 55 1/8, 63, 70 7/8, 78 3/4 |
| Type 22 | 4 inches |
| Type 33 | 6 1/8 inches |
| Highest allowed working temperature (°F) | 140 °F |
| Highest allowed working pressure | 145,04 psi |
| Connecting thread | G 1/2" inside |
| Connecting pitch | 2" |
Heat output
| Width [inches] | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height [inches] | 20 5/8 | 24 5/8 | 36 3/8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Length [inches] | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 31 1/2 | 35 3/8 | 39 3/8 | 43 1/4 | 47 1/4 | 55 1/8 | 63 | 70 7/8 | 78 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 31 1/2 | 35 3/8 | 39 3/8 | 43 1/4 | 47 1/4 | 55 1/8 | 63 | 70 7/8 | 78 3/4 | 15 3/4 | 19 5/8 | 23 5/8 | 27 1/2 | 31 1/2 | 35 3/8 | 39 3/8 | 43 1/4 | 47 1/4 | 55 1/8 | 63 | 70 7/8 | 78 3/4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Degree of ventilation | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 | Off | 3 | 5 |
| ΔT 72.5 | 645 | 880 | 959 | 805 | 1099 | 1201 | 966 | 1317 | 1440 | 1126 | 1539 | 1679 | 1290 | 1757 | 1918 | 1450 | 1979 | 2160 | 1611 | 2197 | 2399 | 1771 | 2416 | 2638 | 1931 | 2638 | 2880 | 2255 | 3078 | 3358 | 2576 | 3515 | 3839 | 2900 | 3955 | 4316 | 3221 | 4395 | 4797 | 744 | 1003 | 1095 | 932 | 1256 | 1368 | 1119 | 1505 | 1641 | 1303 | 1757 | 1914 | 1491 | 2006 | 2191 | 1675 | 2259 | 2464 | 1863 | 2508 | 2737 | 2051 | 2760 | 3010 | 2235 | 3010 | 3282 | 2607 | 3511 | 3832 | 2982 | 4013 | 4378 | 3354 | 4514 | 4927 | 3726 | 5016 | 5473 | 1037 | 1341 | 1464 | 1300 | 1679 | 1832 | 1559 | 2013 | 2197 | 1819 | 2348 | 2563 | 2078 | 2682 | 2928 | 2337 | 3020 | 3296 | 2597 | 3354 | 3661 | 2856 | 3689 | 4026 | 3115 | 4026 | 4395 | 3634 | 4695 | 5125 | 4156 | 5367 | 5859 | 4675 | 6036 | 6589 | 5193 | 6708 | 7322 |
Overview of Types

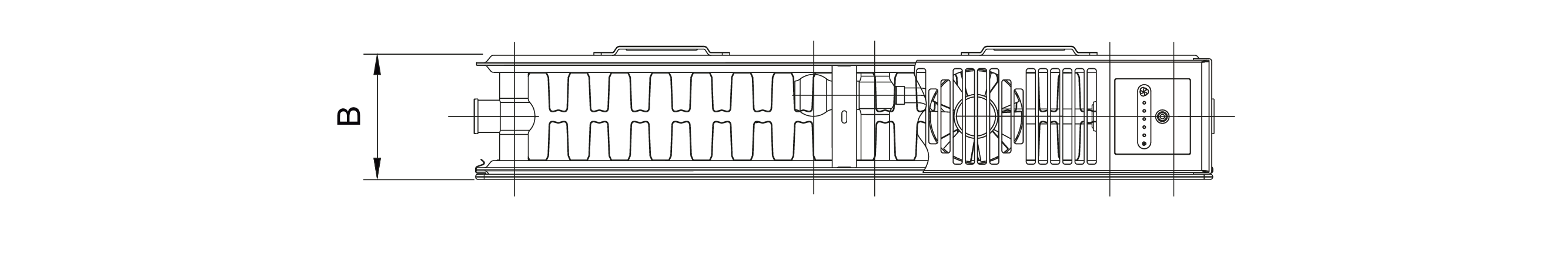

Type 22

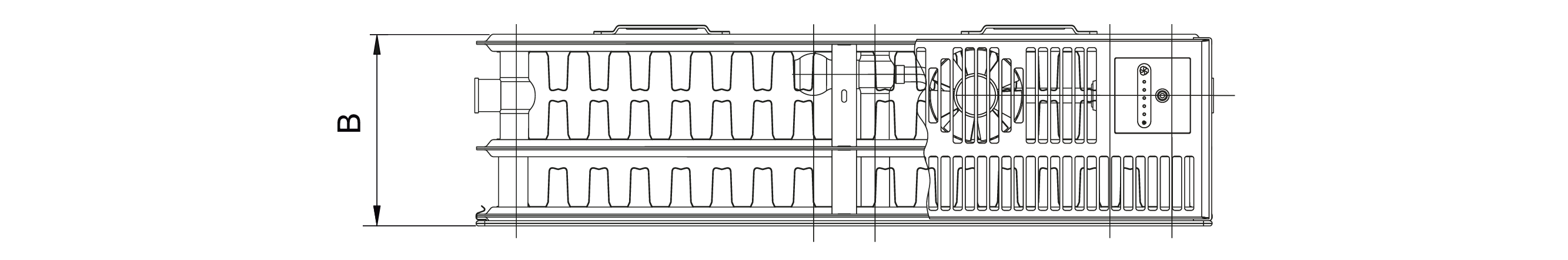

Type 33
Types of Connection
Bottom middle
Right bottom
Side - one side
